- Always reserve a minimum number of parts. Key components should be kept in the field for quick replacement, thus minimizing downtime.
- Make sure that your equipment operators have received training in good working order and safety training.
- In order to facilitate better equipment selection, please provide the following information in the consultation:
①be packaged materials and their properties;
② bag type and size;
③ packaging capacity requirements;
④ Packaging net weight and measurement accuracy
Equipment spatial dimensions
⑤ reserved;
- Kaiwei Company long-term with automatic weighing packaging palletizing production line physical prototypes, can strip the actual operation, welcome customers to come to our distance all-round inspection.
- Please take a moment to visit the monthly www.zp1.com.cn, make sure to know our latest product information and news events.
|
|
| |
| |
|
|
| Product |
Current Location：Home > Product > KAP-700 type |
|

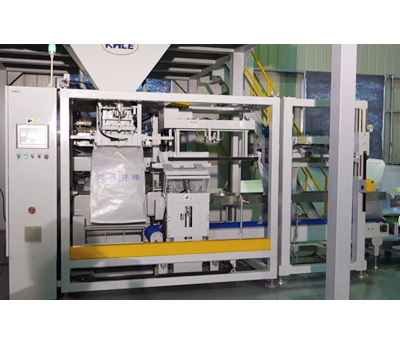

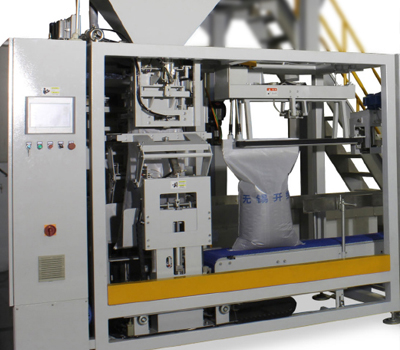

| KAP-700 type |
| |
|
|
|
| |
| Upholding the advanced automatic packing technology from Europe |
| Adapting to all materials which can flow by gravity |
| Applicable to line-styled pillow bag or Gusset type bag |
| Also applicable to soft open mouth bag |
| Compact structural design |
| Compact clipped bag design avoid raising dust |
| Friendly human-machine interface, convenient for use |
| Remote diagnosis function (optional), easy for maintenance |
Type of packing bag:
|
line-styled pillow bag or Gusset bag |
Material of packing bag:
|
Material of packing bag: |
Size of packing bag:
|
(650~1250)L×(380~700)（W）mm |
Working capacity:
|
700~900 Bags/h
(depend on specific property and packing dimension of materials to be packed)
|
Filling volume:
|
20~50kg |
Power supply:
|
AC380V(+10%~-15%) /3P/50Hz，7.5kW |
Compressed air:
|
Pressure: 0.6Mpa (clean and dry) ；consumption: ~1600NL/min |
Operating temperature:
|
+5℃～＋45℃ |
Noise:
|
75dB（A） |
Capacity of bag magazine:
|
3 pile, with 100-200 bags for each pile |
|
|
|
|
|
|
